What is an adjustable lightweight support prop?

4th March 2020

	What is an adjustable lightweight support prop?


	Shop for Support Props

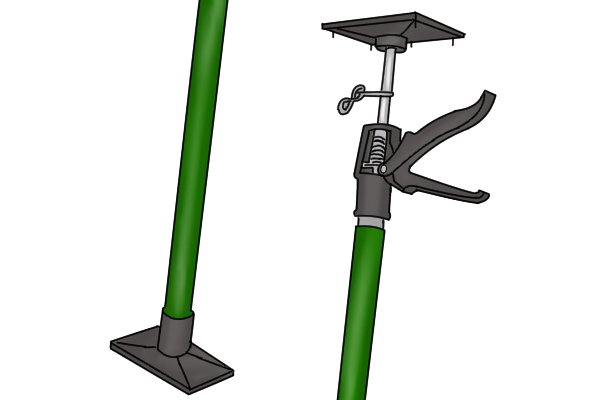

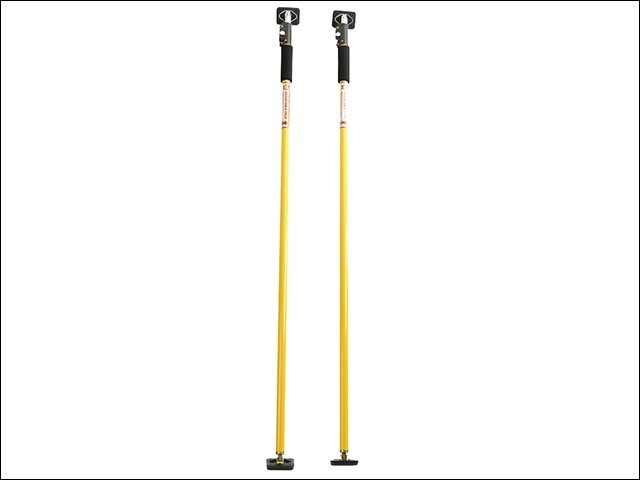

			An adjustable lightweight support prop has rotating plates which allows it to support both vertical and horizontal loads. The feet are rubber so as not to damage the lightweight material they might be supporting, such as drywall.

			These types of supports are not designed to hold large weights like the supports used in large scale construction. Instead, they are designed as a temporary support to hold ceilings or walls in place whilst small scale repairs etc. are completed. They have a thinner construction and a plastic coating making them more lightweight compared to the reinforced steel props.

			What applications are they suited to?
			Adjustable lightweight support props are often used in the installation of drywall and plasterboard as they can hold the boards in place whilst they are being secured.

			There are many other uses for these lightweight props, for example they can be fitted in the home to act as an aid to standing.

			What sizes do they come in?

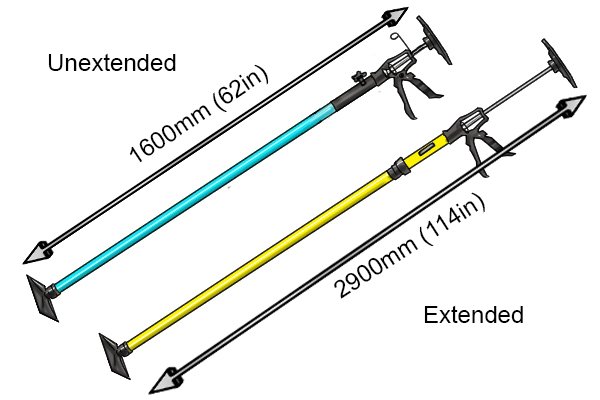

			Adjustable lightweight support props come in sizes of 1 – 1.6m (39-62″ approx.) unextended and 2.9m (114″ approx.) extended.

			When used vertically, these props have a maximum working load of 60kg (132lb) When used at a 45 degree angle, these props have a maximum working load of 20kg (44lb)



			What are the advantages?
			The flexible head is useful for both vertical and horizontal loads Swivelling feet can accommodate uneven surfaces and improve grip One-handed operations are made easier These props are less time-consuming to extend They are relatively thin and lightweight making them easy to store

			Similar devices
			There are similar products to the adjustable support prop which are designed for certain tasks.

			Panel hoist lifts The panel hoist lift is a device specially made for aiding the installation of drywall and plasterboard ceiling panels. It has a lever which when turned raises the hoist with the ceiling panel in place; the panel is then held it place whilst it is secured. The panel hoist lift is particularly useful if working alone.

			Wooden props Wooden props, or deadman braces, can be used to support ceiling boards before fixing in place. They are much more basic than adjustable support props, less secure and have a fixed height.
